Unveiling the Power of Ultrasonic Testing in Material Inspection
In an era where precision and reliability are paramount, UT plays a crucial role. Ultrasonic Testing or UT is a method to inspect materials without causing damage. It relies on ultrasonic waves to penetrate through materials for examination. UT analyses how these waves bounce back to reveal any underlying issues. NDT consultancy has become indispensable in guaranteeing the safety and quality of structures.
An Overview of Ultrasonic Testing of Welds
Ultrasonic Testing of welds is a method used to inspect and ensure the quality of the joints of welds. It involves using ultrasonic waves at frequencies beyond human hearing. This is to examine welds without causing any damage. The sound waves penetrate the weld to uncover any flaws in its structure.
Ultrasonic testing sends sound waves into the welded material. Then, it analyzes how they bounce back. If any anomalies are there in the reflection process, it means there are potential issues in the weld. The method is crucial in industries where welded structures play a vital role. This is because it helps maintain the integrity and safety of the structure.
An Overview of Ultrasonic Testing of Steel
Ultrasonic Testing of steel is a method to assess and ensure the quality of steel structures. This technique examines steel for potential issues. It sends waves into the steel and analyses their reflections. If there are any variations in the waves, it means there are irregularities in the structure. The steel UT method is popular in industries that work with steel structures.
Common Ultrasonic Testing Methods
Phased Array Testing:
Phased Array Testing uses various ultrasonic elements to focus the ultrasonic beam. It offers flexibility in inspecting materials with varying thicknesses and complex shapes.
Time-of-Flight Diffraction (TOFD):
TOFD measures diffracted waves generated by defects. It provides accurate information about the size and location of flaws. This method is very effective for detecting and sizing defects in welds.
Pulse-Echo Testing:
Pulse-Echo Testing uses a pulse of ultrasonic waves into the material. The process analyzes the echoes reflected back. The method is important for flaw detection and thickness measurements in various materials.
Shear Wave Testing:
Shear Wave Testing or angle beam testing sends shear waves into a material at an angle. This method is particularly useful for detecting weld defects and determining their depth.
Guided Wave Testing:
Guided Wave Testing sends low-frequency ultrasonic waves along the length of a structure. This allows for the inspection of large areas. It is very common in the testing of pipelines and other structures with long lengths.
Surface Wave Testing:
Surface Wave Testing involves the use of waves that travel along the surface of a material. This method is suitable for detecting flaws near the surface. It is often used in corrosion assessment.
Ultrasonic Thickness Testing:

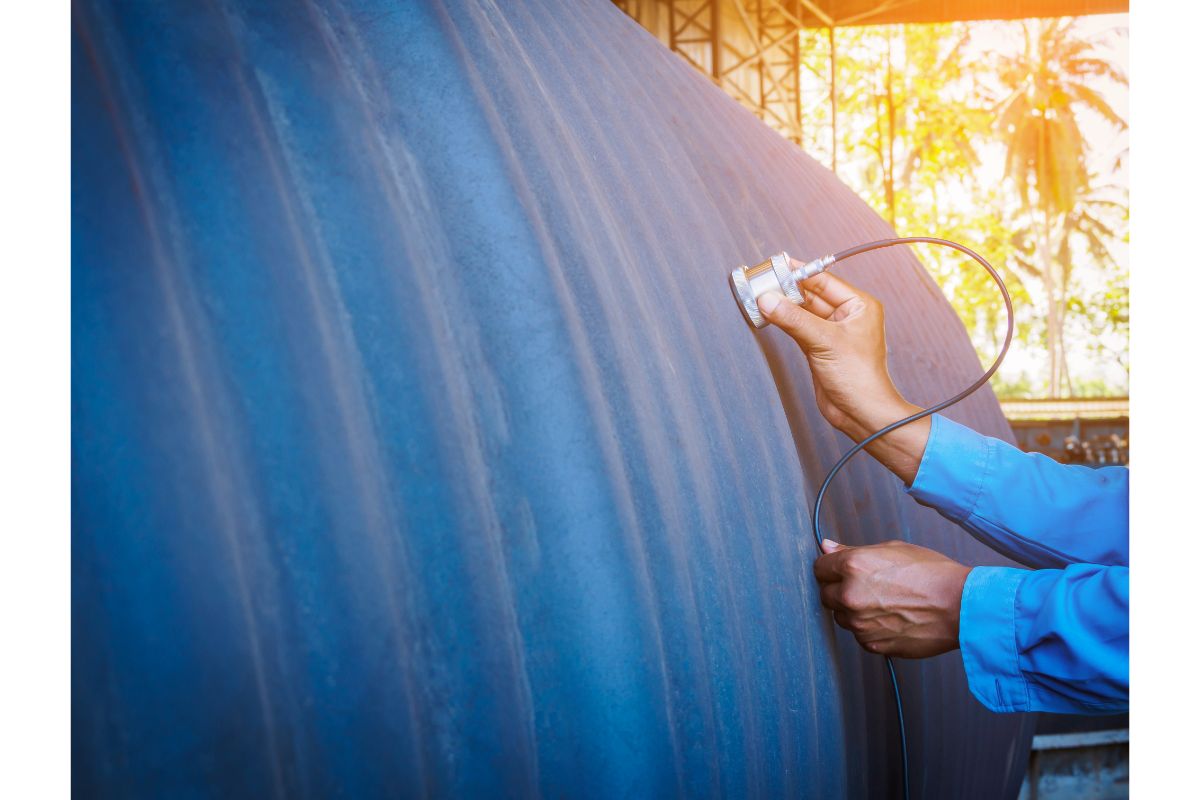

Ultrasonic Thickness Testing sends ultrasonic waves through the material to measure its thickness. It analyzes the time it takes for the waves to return. It is popular in assessing the thickness of pipes, vessels, and other structures.
10 Ways Ultrasonic Testing Can Help
Detecting Flaws:
Flaws could compromise a material’s integrity. So, sending ultrasonic waves into materials is crucial to identify those flaws.
Ensuring Structural Integrity:
It plays a crucial role in assessing the quality of welds and steel. Plus, it contributes to the structural reliability of buildings, pipelines, and other constructions.
Preventing Failures:
Identifying defects early helps prevent material failures. It also ensures the safety and longevity of structures in construction and manufacturing.
Quality Assurance:
Ultrasonic Testing serves as a reliable tool for quality assurance. It confirms that materials meet specified standards without causing damage.
Thickness Measurement:
It allows for accurate measurement of material thickness. This is crucial in industries where maintaining specific thickness levels is a must. It ensures the integrity of the structure.
Efficient Inspection:
With various testing methods, it provides flexibility to inspect different materials and structures. These methods may include contact testing, immersion testing, and phased array testing.
Cost Savings:
Early detection of flaws and defects allows for timely repairs. It helps industries to avoid costly consequences in the future. This could lead to material failures or production interruptions.
Compliance with Standards:
Ultrasonic Testing ensures that materials adhere to industry standards. They should meet regulatory requirements and ensuring compliance with safety protocols.
Non-Destructive Nature:
It is a non-destructive testing method. The process allows for thorough inspections without causing harm to the tested materials. It contributes to sustainable and safe testing practices.
Versatility:
Its versatility makes it applicable in various industries. They may include construction, manufacturing, aerospace and oil and gas industries. This addresses different inspection needs with precision.
NDE consultancy services are super important for industries. They give expert advice to make sure materials meet quality standards. NDE consultancy service providers ensure the structural integrity of materials. They use non-destructive evaluation methods to offer insights into material characteristics. Thus, they can provide expert guidance throughout the lifecycle of industrial structures.
